G320RC Engine

Already since years the Zenoah Engines are the non plus ultra if people are talking about powerful and reliable engines. Especially in competition use they are well known.

This Engine is perfectly for all kind of 4WD off-road classes, ideal for 4WD Short course or Monster and drivers who never can have enough power.
Zenoah G320RC Engine

Item No.: G320RC

Technical Data:

  • Cylinder displacement:  31.8 cm³ / 1.94 cu.inch
  • Cylinder bore: 38 mm / 1.5 inch
  • Cylinder stroke: 28 mm / 1.1 inch
  • Power output: 3,26PS / 2.40 kW at 13.000 RPM
  • Drehmoment: 2,00NM at 9.000 RPM
  • Carburettor: WT-1107
  • Venture: 13,5mm (Diameter)
  • Spark plug: NGK CMR7H
  • Spark plug gap: 0,65mm
  • Ignition system: Transistor charger ignition (TCI with BTC 30° / 8000 URPM)
  • Start system: Seilzugstarte
  • Effective Compression Ratio: 9,7
  • Recomended Fuel: 25 Parts gasoline / 1 Part Oil
  • Clutch: 2 Shoes
  • Clutch Engagement at ca. 6.000 RPM
  • Idling Speed: ca. 4000 RPM
  • No load max. Speed: ca. 20.000 RPM
  • Fuel Consumption: ca. 519g/kw h
  • Overall dimensions (LxWxH): 167 x 216 x 197mm
  • Weight ca: 2,3 kg

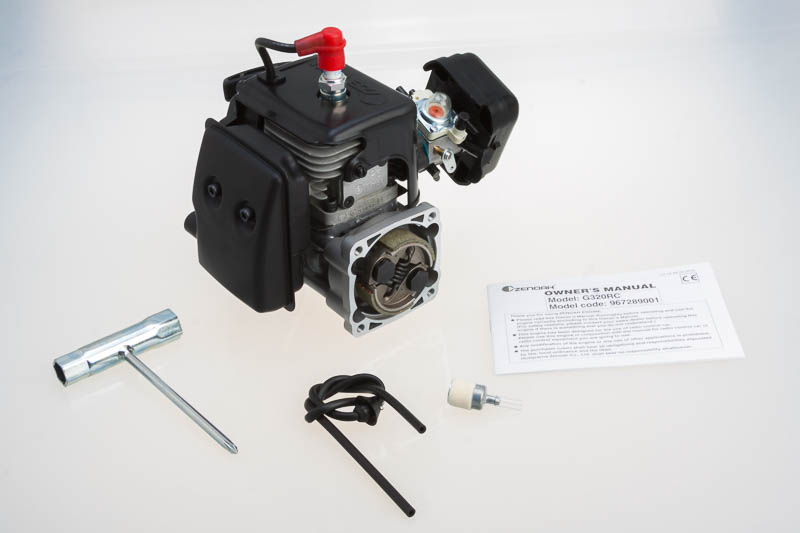

Scope of supply:

  • Walbro 1107 Carburetor
  • Airfilter
  • Silencer / Muffler
  • Service & Small Parts Accessories bag
  • Clutch System from Zenoah incl. Clutch Shoe Arm
  • Clutch Housing
