1S 120A Electronic Speed Controller (SK300048)

Toro 1S 120A ESC for 1/12
Onroad Competition

Toro One Cell 120A ESC is designed for 1/10th Scale one-cell class racing with small size, built-in power switch and durable aluminum out case. It also comes with built-in DC-booster and capacitor module.
It features advanced timing system and well-performed throttle and brake control function. Racers could set the boost and turbo timing precisely, and punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
It also supports firmware update and can be programmed by SkyLink via PC, Program Box and even your smart phone.



Compact Design

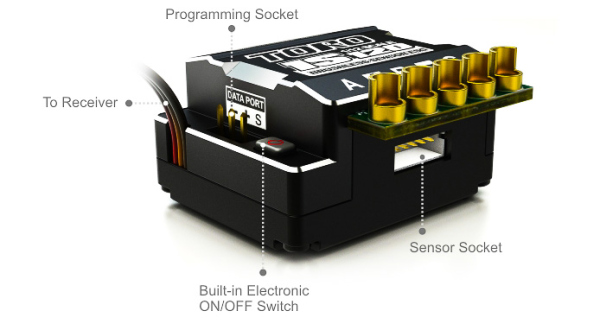

Built-in Electronic Switch

The electronic switch is built in so that it could save space.
And the electronic switch is more sensitive and reliable.

Built-in DC Booster & Capacitor Module

This ESC comes with built-in DC booster, which allows drivers to power their vehicle's electronics on a single 1 cell Li-Po battery pack without installing additional external boosters or receiver pack.
And it's with built-in capacitor module. This feature does away with the need to use a separate capacitor.

Less Resistance, Less Heat, More Efficieny

10 User Modifiable Profiles

The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.

Safety Features

Firmware Update

The firmware can be updated by connecting the ESC with a PC or a smart phone.

Programming Methods

The ESC can be programmed with:
1. SKYLINK (SK600013)
2. PROGBOX (SK300046)

Precise Programmable Items

Advanced Timing System
Users could set the turbo and boost timing which can improve the
motor RPM to get its best performance.
SK300048 - Toro 1S 120A ESC software

Boost Timing Setting

SK300048 - Toro 1S 120A ESC software

Boost Curve Custom

SK300048 - Toro 1S 120A ESC software

Turbo Timing Setting

Well-performed Throttle & Brake Control Function:

Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves, and different customers' request for linear and power all can be met.



SK300048 - Toro 1S 120A ESC software

Throttle Control Setting

SK300048 - Toro 1S 120A ESC software

Throttle Curve Custom

SK300048 - Toro 1S 120A ESC software

Brake Control Setting

SK300048 - Toro 1S 120A ESC software

Brake Curve Custom

TECHNICAL DATA
Constant/Burst Current 120A / 760A
Motors Sensor & Sensorless Brushless Motors
Cars 1/12 On Road competition
Motor Limits ≥ 3.5T (3 slots, 2 poles, 540 class motor)
Resistance 0.0003 Ohm
Battery Cell Count 1S LiPo
BEC Output 6V @ 3A, line
Weight 50g (without wires)
Dimensions (LxWxH) 37,8 x 38,5 x 22,5mm
