Micro, powerful, reliable - brandnew XRotor FPV combo!

by Admin (comments: 0) HW38040023 XRotor FPV Combo by Hobbywing

XRotor FPV Combo 30A 2405-2600kV including 5045 propeller

Brandnew by HOBBYWING is the Quadcopter Drone Power Pack, featuring Hobbywing 2405-2600 Brushless Motors and Hobbywing XRotor 30A ESCs (HW38040023). This XRotor FPV Combo - exceptionally small and lightweight - is designed for competition, ensures higher efficiency and less heat.

With a weight of only 6g, the XRotor Micro comes with original BLHeli_S firmware designed specifically for competition FPV drones. The XRotor system supports Oneshot 125/42, Multishot and Dshot150/300/600, as well as regular PWM  throttle signals. Upgrades for the firmware are available via ESC signal cable and program up to four ESCs at the same time.

Enjoy smooth throttle response and silent operation thanks to the ESC firmware with hardware-generated motor PWM. Using regenerative braking, the XRotor motor has fast motor retardation and active freewheeling. Interferences caused by signal transmission are greatly reduced by the twisted-pair throttle signal cable which also increases flight stability and realiability for multi-rotor drones.


Features:
  • 24mm Stator Width; 5mm Stator Height - Low CG design
  • Integrated locking teeth to secure prop even under prop strikes
  • Integrated cooling fan design
  • Aluminum Allow motor design - Incredible durability
  • N54 High Strength Magnets
  • 0.2mm Stator Laminations
  • 4mm Thick Bearings
  • 35.5g AUW

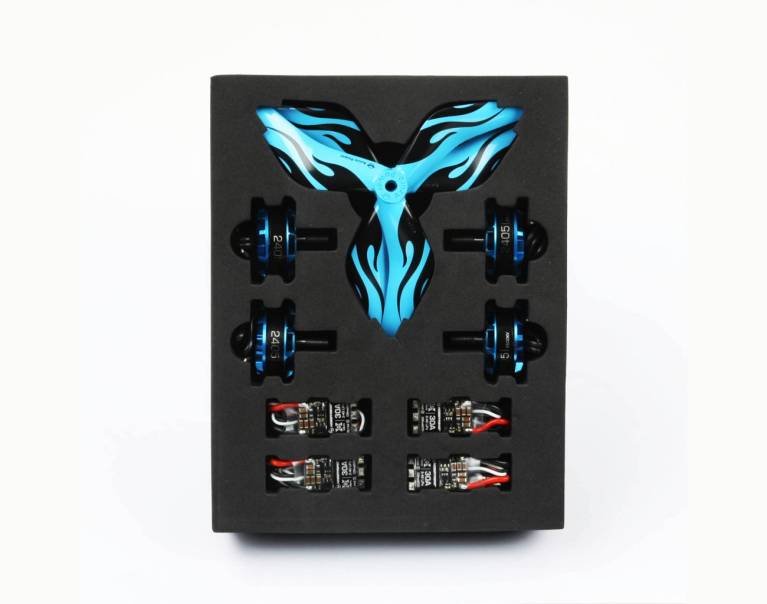

Box content:
  • 4 x XRotor 30A Micro BLHeli-S DShot600 ESC (HW30901075)
  • 4 x XRotor 2405 2600KV Motor (HW30405401)
  • 2 x Blue Fiberglass 5045 Propeller CW
  • 2 x Blue Fiberglass 5045 Propeller CCW
  • 16 x Black Hex Socket Screw M3x6
  • 16 x Black Hex Socket Screw M3x8
  • 4 x Black Locknut M5
  • 1 x T Socket Spanner
Hobbywing FPV Combo

Features & Specifications:

Further features:

  • FPV's with 150-280mm Diagonal Wheelbase
  • EMF8BB2 chip for great performance, 48MHz.
  • BLHeli-S open-source program implemented in the ESC supports all BLHeli-S functions like ESC programming and firmware upgrade via the throttle control signal cable.
  • Small size combined with light weight for easy installation.
  • Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
  • The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us). The input signal is automatically detected by the ESC upon power up.
  • Compatible with the latest DShot150/300/600 (throttle signal) mode as well.
  • The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes a flight more stable.
  • Compatible with various flight controllers and supports a signal frequency of up to 621Hz in “Regular”signal-receiving mode.


ESC Specifications:
LiPo Power Input:
2-4S
Cont. Current: 30A
Burst Current: 40A
BEC Output: N/A
Firmware: BLHeli-S A-H-5016.5
Modes: Oneshot 125/42, Multishot, DShot150/300/600
Size/Weight: 23.8x14.5x5.8mm / 6g

Motor Specifications:
KV: 2600kV
Voltage Input: 4s LiPo
No-Load Current (A/10V): 1.6A
Continuous Current/Power: 25A/420W
Slot/Plot Count: 12/14
Motor/Shaft Diameter: 30.8mm - 5mm
Weight: 35.5g

Hobbywing FPV Combo
