KO PROPO EX-1-KIY Radio

  • Overview
  • Features
  • Accessories

EX-1 KIY Ver.3 Highlights

More...  Expert Grip
More...  Software in Ver.2 is utilized the expert grip with implementing the grip pad 2 for a new hold feeling.
More...  Optimum feeling for the driver is offered with the new trigger enlargement for a more effective stroke and ergonomic design which allows for a high dimension of delicate throttle work.

*There is no modification to the Master Unit software from Ver.2.
*Customers with previous versions can use the expert grip unit or grip pad 2.
*The 'Expert Grip' can be utilized with any of the current master units.

KIY CONCEPT

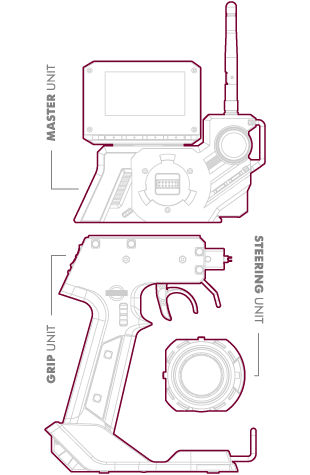

KO PROPO introduces Kustomize It Yourself (K.I.Y.) an interchangeable transmitter. The concept of the new K.I.Y. brings simplicity to customizing and upgrading within a modular system. The new transmit ter is composed of 3 modular units: Steering, Throttle and Master units. The three separate modular units can be easily put together, no s crews required. Just push the safety lock of the joint, pull the lever and pull or push to insert or remove the modular unit. It’s that simple! You can use the K.I.Y. to unlock your next system and bring more enjoyment to your hobby.

Specification EX-1 KIY
Item No.KO80540

Product name:  EX-1 Ver.3 KIY / No. KO80540
Transmitter:  KT-411H
Master Unit:  KO10520 FHSS Ver.2
Steering Unt:  KO10506 Steering Unit EX-1
Grip Unit:  KO10526 Expert Grip
Receiver:  KR-413FH
Operating system:  steering wheel & throttle trigger
Number of channels:  4
Transmit frequency band:  2.4GHz
Nutral pulse:  1.5msec
Power source:  RO3/AAA/UM4 battery x 4, or 4 cell battery pack
Current consumption:  less than 140mA
KoPropo EX-1 KIY
KoPropo EX-1 KIY

Specification EX-1 KIY Mini-Z Version
Item No.KO80537

Product name:  EX-1 ASF Ver.3 KIY / No. KO80537
Transmitter:  KT-411ASF
Master Unit:  KO10522 ASF Ver. 2
Steering Unt:  KO10506 Steering Unit EX-1
Grip Unit:  KO10526 Expert Grip
Operating system:  steering wheel & throttle trigger
Number of channels:  4
Transmit frequency band:  2.4GHz
Nutral pulse:  1.5msec
Power source:  RO3/AAA/UM4 battery x 4, or 4 cell battery pack
Current consumption:  less than 140mA

Receivers compatible table

Modul / Radio
KR-411FH KR-211FH KR-212FHG KR-413FH
RF-902S - - - -
RF-901S - - - -
EX-5UR - - - -
RF-903FH OK OK OK OK
RF-904FH OK OK OK OK
EX-1K.I.Y OK OK OK OK
Note:     required
4ch System




High performance CPU & 2.7inch LCD

Adopting a new CPU that is 20% faster then our previous system. The 16bit processor inside this master unit allows for quick data processing and securely performing delicate control. The large size LCD allows for various function configurations at a quick glance.

Expert Grip

Optimum feeling for the driver is offered with the new trigger enlargement for a more effective stroke and ergonomic design which allows for a high dimension of delicate throttle work.

Quick SetUp Function

Quick Set Up allows for a shortcut to quickly setup your vehicle. These are the basic configurations that are usually used to setup your vehicle and accessed the most.

Direct Button

The four buttons under the LCD panel are the Direct Buttons. When one of the buttons are pressed, the assigned function will appear in the menu for quick reference and adjustment.

2.4GHz FHSS

The FHSS system which is used has a foldable and removable antenna for storage. The improved system increases the reliability and removes error for communication failures. The corresponding receiver used is the KR-411FH, which is the same receiver used by our other FHSS systems.

7 LED color

colors are available. You can change the color by function menu. RED, GREEN, BLUE, YELLOW, PURPLE, LIGHT BLUE and WHITE.

629g Super light weight

EX-1 can be operating with only AAA 4 sells. The main circuit helps to operate the transmission with low voltage. This allows to super light weight design. Total weight includs batteries is only 629g

40 Model memory

EX-1 supports big capacity model momery. You can stock data of 40 cars.

Setting

Model:
Select, Name, Copy, Reset

Steering:
Trim, Travel, Balance, SubTrim, TrimRate, TurnSpeed, ReturnSpeed, Punch, Curve, Reverse, Travel Override

Throttle:
Trim, Point, Brake, SubTrim, TrimRate, TurnSpeed, ReturnSpeed, Punch, Curve, Reverse, DragBrake, Brake Override, ABS, Accel, AutoStart, IdleUp

3/4ch:
2WAY: 2 positions setting
3WAY: 3 positions setting
5WAY: 5 positions setting
ANALOG: 25 steps and end position setting
4WS MIX: NORMAL, REVERSE, F STEER, R STEER
AMP MIX: NORMAL, BURN, DIG, F HOLD, R HOLD
T-MIX: Brake setting

QuickSetup:

Timer:
StopWatch, DownTimer, LapHistory

Function:
Monitor, LEDcolor, BackLight, Contrast, SoundVol, Buzzer, KeyRepeat

System:
Response, Setup, DirectBT, Steering AdjustVR, Throttle AdjustVR, OP-Timer, 2.4GBand, PowerManagement, AllReset, ICS

Master Unit
EX-1 FHSS Ver.2(+KR-411FH)
No. KO10520
Master Unit
EX-1 ASF Ver.2(for Mini-Z only)
No. KO10522
Steering Unit
Steering Unit EX-1
No. KO10506
Steering Unit
3D Extension Unit for KIY
No. KO10501
Steering Unit
ST Unit Stick Type for KIY
No.KO10502
Grip Unit
Expert Grip(Right)
No. KO10526
Grip Unit
Expert Grip(Left)
No. KO10527
Grip Unit
Right Hand Grip Unit
No. KO10507
Grip Unit
Left Hand Grip Unit
No. KO10504
Accessory
Grip Pad2 (Wine Red)
No. KO10528
Accessory
Grip Pad2(Black)
No. KO10529
Accessory
Grip Pad2 (Gray)
No. KO10530
Grip Unit
Grip Pad2 (Green)
No. KO10531
Accessory
Grip Pad2 (Blue)
No. KO10532
Accessory
Color Grip Wine Red for KIY
No. KO10510
Accessory
Color Grip Black for KIY
No. KO10511
Accessory
Color Grip Gray for KIY
No. KO10512
Accessory
Color Grip Green for KIY
No. KO10513
Accessory
Large Grip Black for KIY
No. KO10503
Accessory
Large Grip Gray for KIY
No. KO10514
Accessory
Large Grip Green for KIY
No. KO10515
Accessory
Counter Weight Set for EX-1 KIY
No. KO10509
Accessory
Short Stick Head Black
No. KO10517
Accessory
Short Stick Head Silver
No. KO10518

Compatible Receivers (These are FHSS Type. Can not Use With ASF.)

FHSS Receiver
KR-411FH
No. KO21004
FHSS Receiver
KR-211FH
No. KO21005
FHSS Receiver
KR-212FHG
No. KO21006
