Quattro Micro Battery Charger (SK100079)

4x1 Cell LiPo for MICRO/MICRO R./MX/mCPX

Quattro Micro Battery Charger employs the circuit that features four totally independent but identical power outputs which are powered 4W each. It is designed for charging single cell LiPo.Insert the lead to the right connector in each port,the charger will charge 4 batteries at the same time. And the charging current can be adjusted from 0.1-1A by dial,the charging capacity and cell voltage can be displayed in each 4-digital LED Indicators.

4 Independent Ports

Four totally independent but identical power outputs which
are powered 4W each are capable of charging four 1S
LiPo packs at the same time and fully independently.

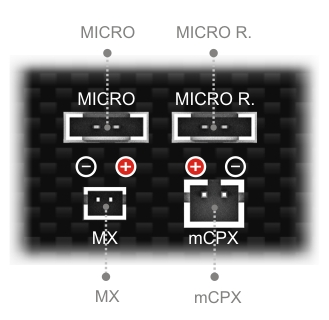

4 Different Kinds Of Battery Connectors

4 connectors for Multiple 15 Micro Heli/Airplane Lipo batteries!

4 Digital LED Message Display

AC/DC Dual Power Input

Worldwide operation: need not any alternative switcher,
worldwide safe operation,
convenient to use at home or at the track.

TECHNISCHE DATEN
Net weight 280g
AC Input 100-240V
DC Input 11-15V
Charge circuit power 4x4W +-10%
Charge curent range 0.1 - 1.0A +-10%
Battery type 4x1 cell LiPo
Battery connector type Micro / Micro Reverse / MX / mCPX
Working temperature 0-50 °C
