Volition 2WD Short Course Truck

  • Overview
  • Features
  • Media

Metric 550 High Torque Motor

The Metric 12-Turn motor produces class leading speeds & torque. With an internal fan, the motor runs cooler, maximizing efficiency & sustaining performance.

Learn more about the Criterion’s features More...

Metric 30A ESC

The waterproof Electronic Speed Controller (ESC) provides great performance in all weather conditions. The proportional throttle control with reverse & brake is perfect for all skill levels. Ready for upgrades, the ESC supports up to 2s LiPo.

Learn more about the Criterion’s features More...

3000mAh Battery & 1 Amp Charger

A 3000mAh 7-cell NiMh rechargeable battery pack delivers the power necessary to reach speeds in excess of 30 mph while the included 1 Amp charger improves your driving-to-waiting ratio.

Learn more about the Criterion’s features More...

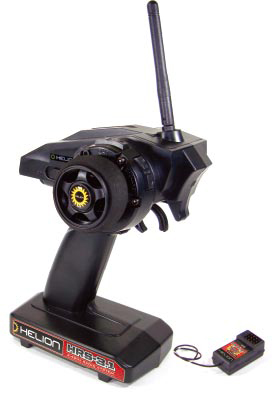

HRS-3.1 2.4GHZ Radio System

Utilizing one of the most advanced 2.4GHz radios on the basher market, the HRS-3.1 brings features to your hand that are typically found in high end radios! This product is not only user friendly, but also includes cutting-edge functions such as end point adjustment, dual rates, digital trims, servo reversing & easy binding.

Learn more about the Criterion’s features More...

The Volition Story

The Volition 2wd Short Course Truck offers speed, durability and value unheard of in his class.  A 2.4 GHz 3-channel radio system eliminates frequency conflicts, while the 12-turn 550 motor churns out blistering acceleration and incredible top speeds in excess of 30 mph through the beefy all metal gear transmission.  Constructed from lightweight yet strong material, the fully independent suspension and oil filled shocks soak up even the worst terrain.  A 3000mAh 7-cell NiMH rechargeable battery pack provides excellent runtime while an incredibly efficient LiPo compatible waterproof Metric 30A electronic speed controller (ESC) with reverse puts you in full control.  Full ball bearings throughout the vehicle reduce friction and increase runtime.  A robust waterproof 6g servo gives crisp steering response while the high grip, long wear tires keep you hooked up over a multitude of surfaces.  Included is a 1 Amp A/C wall charger that improves your driving-to-waiting ratio.

All Weather Electronics

Utilizing a water resistant receiver box with a waterproof servo and ESC means more fun in more conditions including rain, puddles and snow!

Metal Gears

Extremely durable all-metal main gears and rugged planetary differential gets the power to the ground with reduced maintenance and easy servicing.

Adjustable Suspension

Long travel suspension arms and adjustable oil filled coil-over turned shocks with bladders, keep you in control over the roughest terrain.

Durable Composites

Rugged, engineering grade high impact composite chassis components provide both the strength and durability to keep you running on course.

All Terrain Traction

High grip, long wear tires coupled with realistic off-road styled wheels keep you locked in and ready for any condition.

Precision Ball Bearings

Rubber sealed bearings keep your drivetrain running smooth and efficient by keeping the dirt out of and the grease in!

Additional Features

Four wheel independent suspension
Independent suspension provides superior cornering in all conditions and improves handling over jumps and bumps.

Dual bellcrank ball bearing steering with servo saver
The same system found on world champion winning buggies protects precision servo gears in high impact situations.

All Metal Drive Shaft
Continuing the robustness from metal gears, the steel gogbones, differential outdrives, and axle cups hold up to the high torque demands from the Metric 550 power plant and are ready for brushless upgrades when you are.

High Torque 12 turn 550 size motor
The 12 turn 550 size brushed motor delivers unrivaled explosive launches and high speeds topping 30 mph!

Separate waterproof ESC and 6kg torque servo
Unlike 2 in 1 systems the separate servo and ESC do not require a compromise in placement and quality.

Tool-less battery strap
Keeps the battery secure while retaining easy access without the need for tools or easily lost clips.

Adjustable Body Mounts
Tune the look of your existing body or use the adjustable mounts to fit the many aftermarket body options.

Specifications

Lipo compatibility: 2s
Motor: 12T 550 Brushed
Battery: HCT-Plug Connector, Hump Configuration
Gear Pitch: 48P (P:20, S:84)
Wheels: 12mm Hex (24mm OS, TRX and KYO Compatible)
Length: 545mm (21.45in)
Height: 195mm (7.67in)
Width: 296mm (11.65in)
Wheelbase: 331mm (13.03in)
Weight (approx.): 2,240g (4.9lb)
Internal Gear Ratio: 2.62:1

What else

Whats in the BOX

  Volition 1:10 Scale 2WD Electric Off-Road Short Course Truck
  HRS-3.1 2.4GHz Radio System
  3000mAh 7-cell NiMH Battery
  7 Cell NiMH 1 Amp AC Wall Charger



Needed to Complete

  4x AA-size batteries for transmitter
