eFuel 30A Power Supply (SK200013)

eFuel 30A Power Supply



Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.

Features



Tow DC power outputs, up to 30A

Adjustable output voltage, 12-18V

Large LCD display shows voltage and current

Two USB power ports, 5V and 1000mA

Smart cooling fan

Overtemperature protection

Overload protection

Short-circuit protection

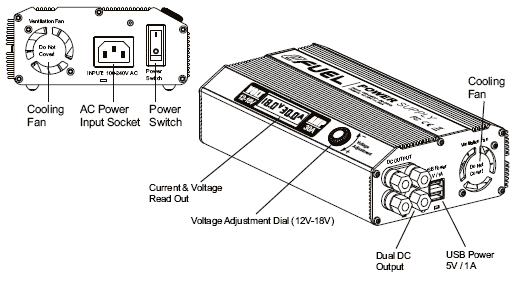

Illustration

TECHNISCHE DATEN
Input Voltage 100-240V AC
Input AC Frequency 50-60Hz
Output Voltage 12-18V DC ± 0.5V
Output Current 30A ± 1A
Current Overload Protection >31A 500ms
Input Fuse 10A
LCD Display Voltage Precision: ± 0.3V
Current Precision: ± 0.3A
Output Voltage Ripple <150mV
USB Output 5V / 1A
Power Efficiency 89%
Power Factor >0.98
Over Temperature Protection 65°C
Cooling Method Cooling Fan
Operating Temperature Range 0-40°C
Operating Humidity Range 0-90%
Weight 1.62g
Dimensions (LxWxH) 218x139x59.5mm
